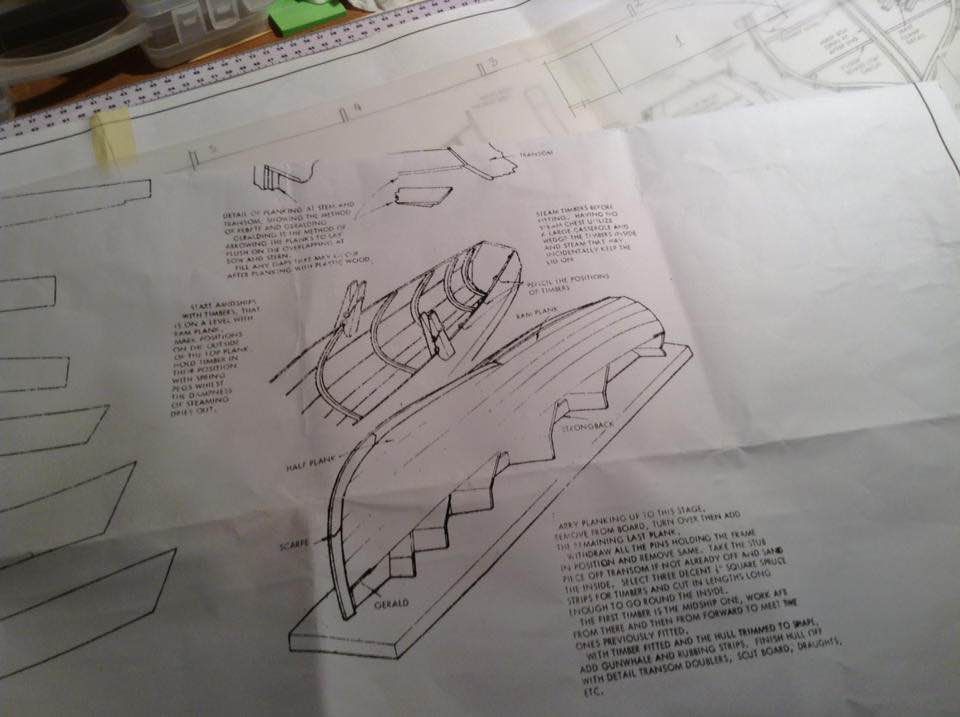

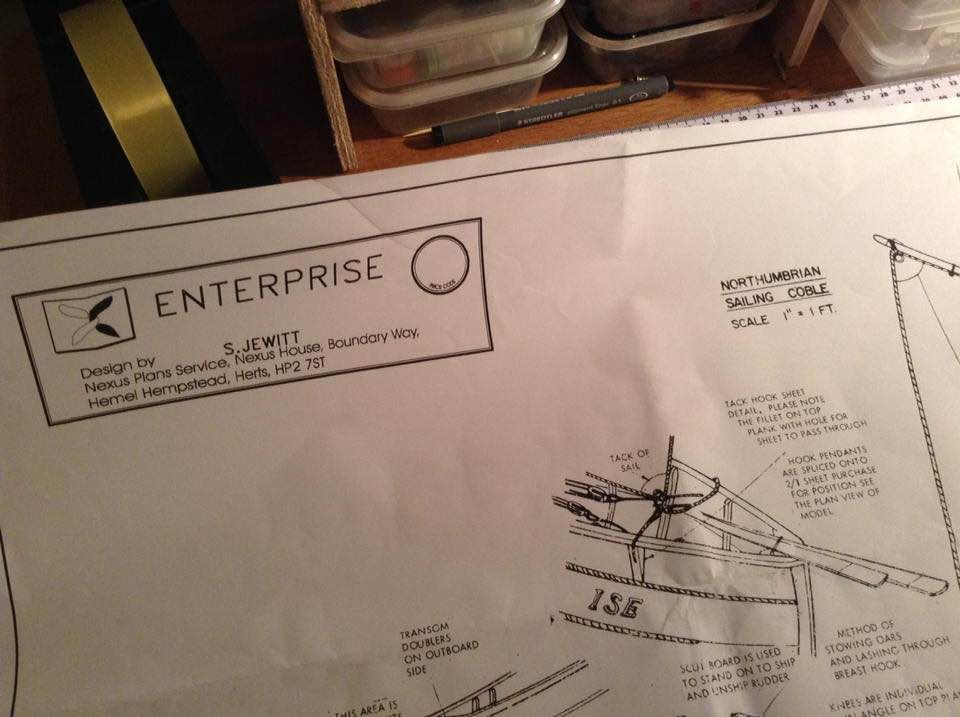

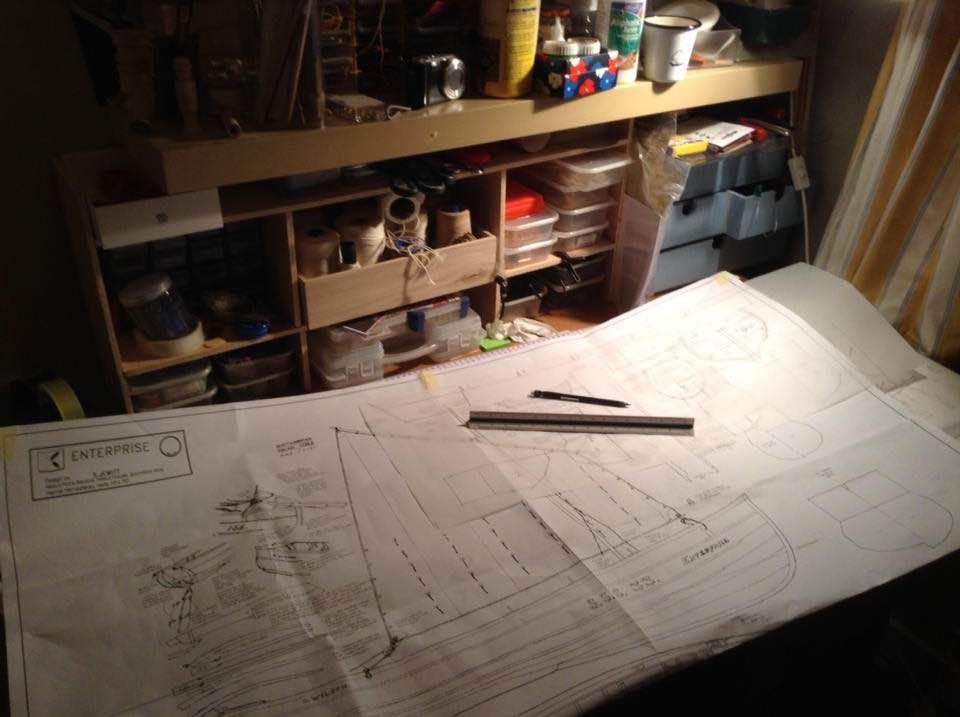

Starting this model, plans being traced, spruce and obechi wood ordered.
Advert

21 January 2018 at 20:16 #7120
Brian Muir
Participant
@brianmuir84327
21 January 2018 at 22:46 #75247
Charles Oates
Participant
@charlesoates31738

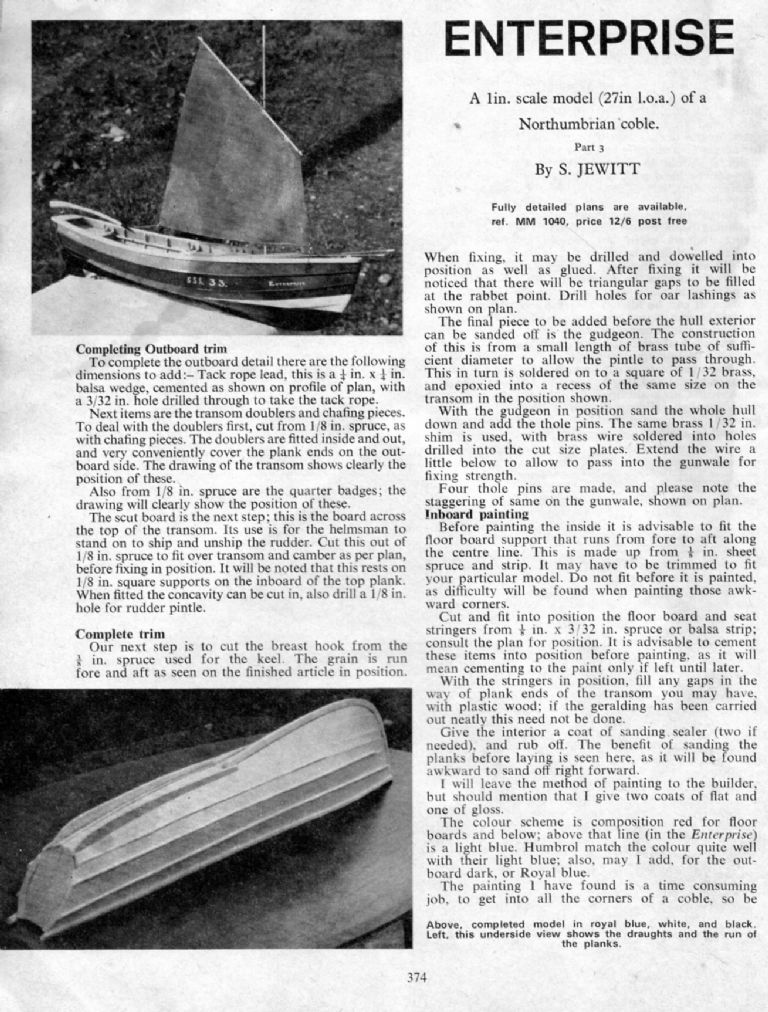

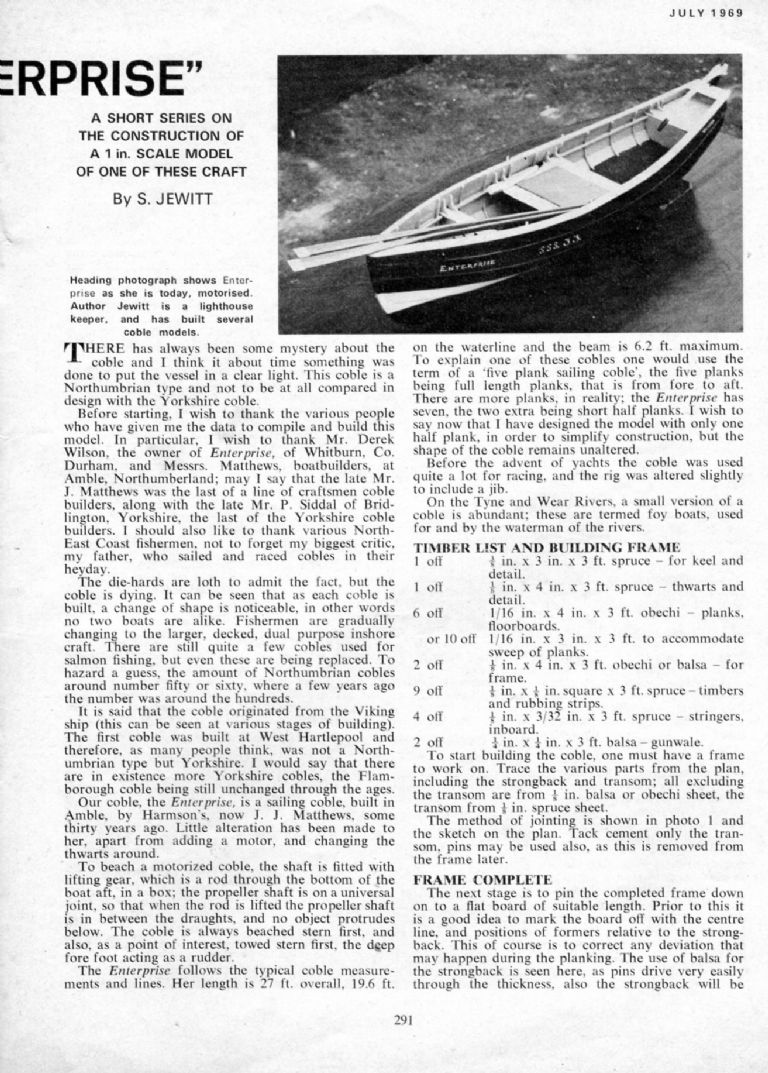

I shall enjoy looking at this build, I was looking at the original article in an old Model Boats magazine only yesterday.

Proper boat building.

Chas
22 January 2018 at 08:26 #75250
Brian Muir
Participant
@brianmuir84327
Hi Charles, I wasn't aware it had been in the magazine, what issue, perhaps I could find it in the online archive?

Brian
22 January 2018 at 08:26 #75251
Brian Muir
Participant
@brianmuir84327
Hi Charles, I wasn't aware it had been in the magazine, what issue, perhaps I could find it in the online archive?

Brian

Edited By Brian Muir on 22/01/2018 08:27:17
22 January 2018 at 08:51 #75252
Charles Oates
Participant
@charlesoates31738

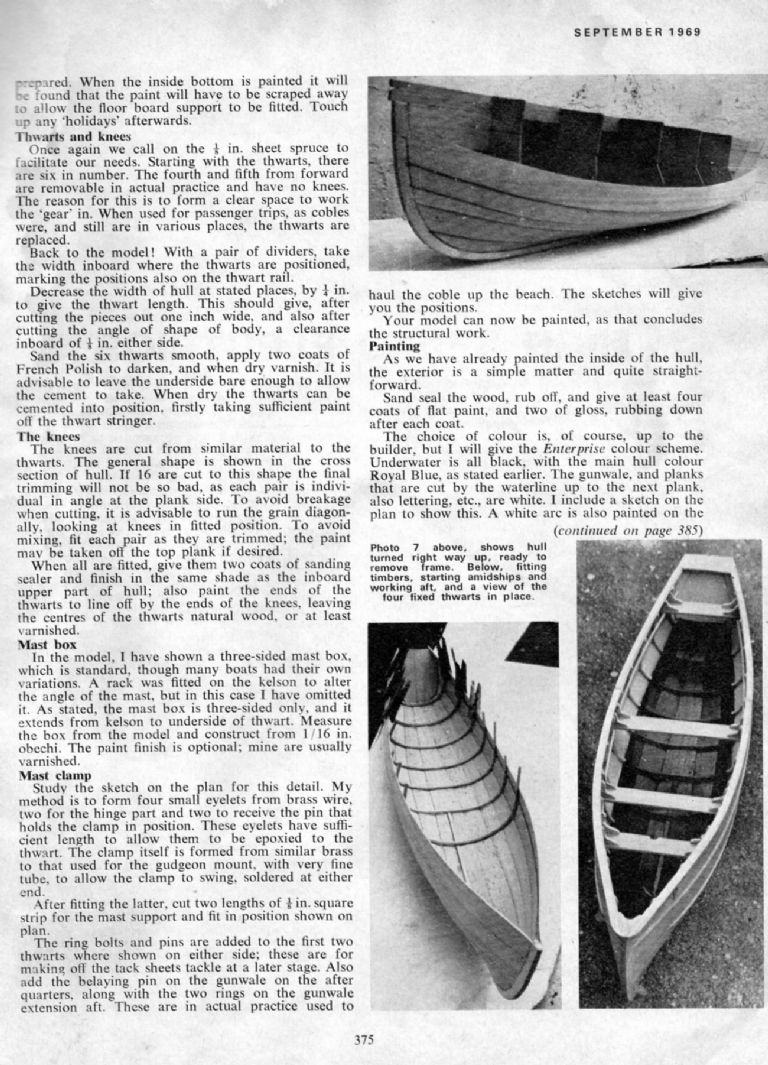

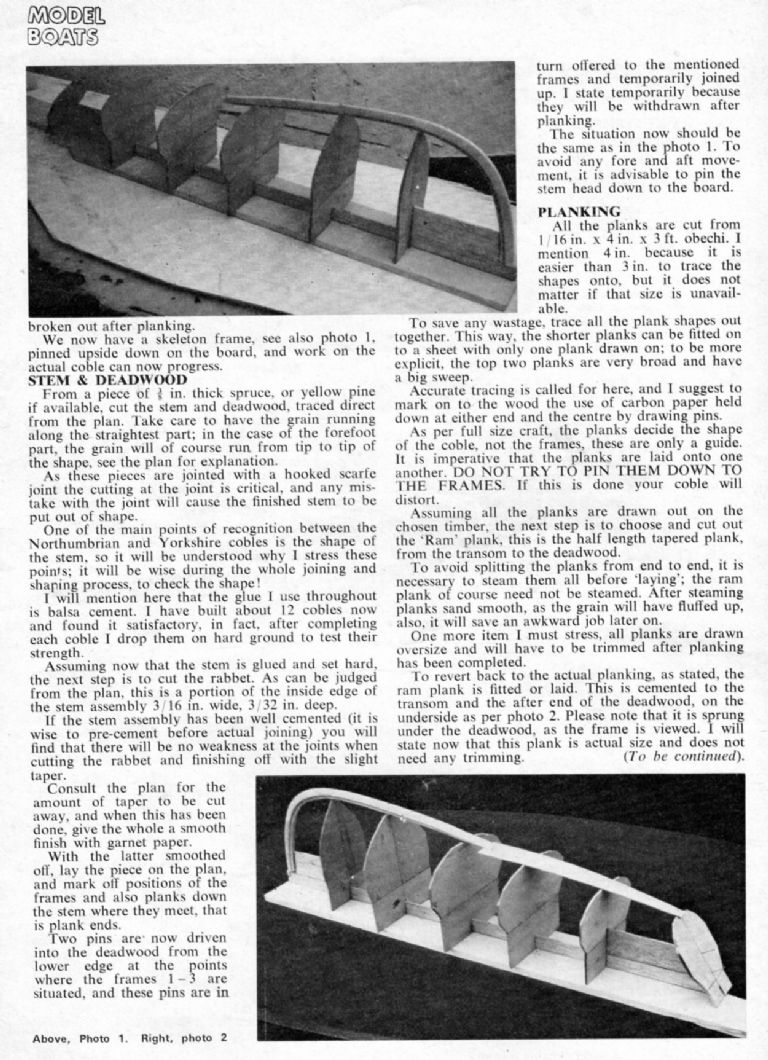

Hi Brian, it was way back in 1969. I think the series ran to 3 parts, but I only have the first 2. I can scan the articles for you and email them to you later today.

Chas
22 January 2018 at 08:53 #75253
Ray Wood 3
Participant
@raywood3
Hi Brian/Chas

I'd guess this was described in the 70's ?? I think this is called lapped strake planking, this will make a great model

Regards Ray Good Luck
22 January 2018 at 10:32 #75255
Dave Milbourn
Participant
@davemilbourn48782
Back in the days when all of the lettering on the plan was done with a Rotring pen and a stencil. Ask me how I know.

We've often stopped to look at these lovely little boats whenever we've seen one in a harbour or marina. Far more interesting than those swanky glassfibre diesel-eaters. I'll look forward to this build.

DM
22 January 2018 at 13:08 #75257
Brian Muir
Participant
@brianmuir84327
That would be great if you could scan them Charles, thanks.

Yes Dave, all imperial measurements too! They are interesting, the plan suggests steaming the wood to fit the frames, but they couldn't have done this is real life.

Yes Ray, the planking looks a bit tricky, especially the "geralding " around the stem and the transom, thank goodness for the Internet to find out what that was!
22 January 2018 at 13:59 #75258
ashley needham
Participant
@ashleyneedham69188
I have seen boat restorers steaming full size planks to fit to an Oakley lifeboat, so it WAS done!! How much it was done of course is the question…

Ashley
22 January 2018 at 17:06 #75266
Charles Oates
Participant
@charlesoates31738
Hi Brian, I've done the scans, I had parts 1 and 3. You should have a message in your inbox asking you to pm me your email address to send them on.

Chas
23 January 2018 at 10:55 #75301
Charles Oates
Participant
@charlesoates31738
Scans have been sent

Chas
23 January 2018 at 19:14 #75308
Brian Muir
Participant
@brianmuir84327
Many thanks to Chas for these scans from the original magazine article, all very useful, but in true "Sod's law" tradition part 2 wasn't available which covers the planking!
23 January 2018 at 19:14 #75309
Brian Muir
Participant
@brianmuir84327
Many thanks to Chas for these scans from the original magazine article, all very useful, but in true "Sod's law" tradition part 2 wasn't available which covers the planking!
15 February 2018 at 20:10 #75865
Brian Muir
Participant
@brianmuir84327

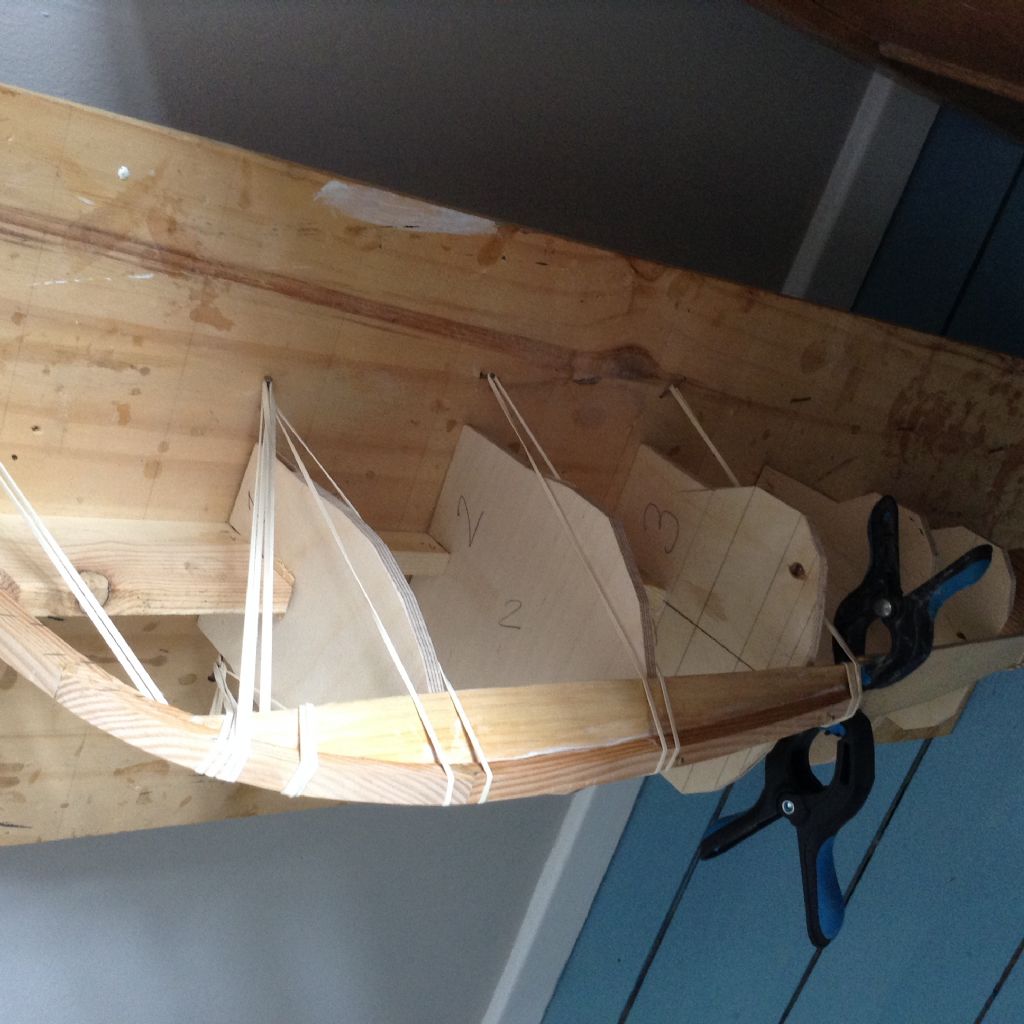

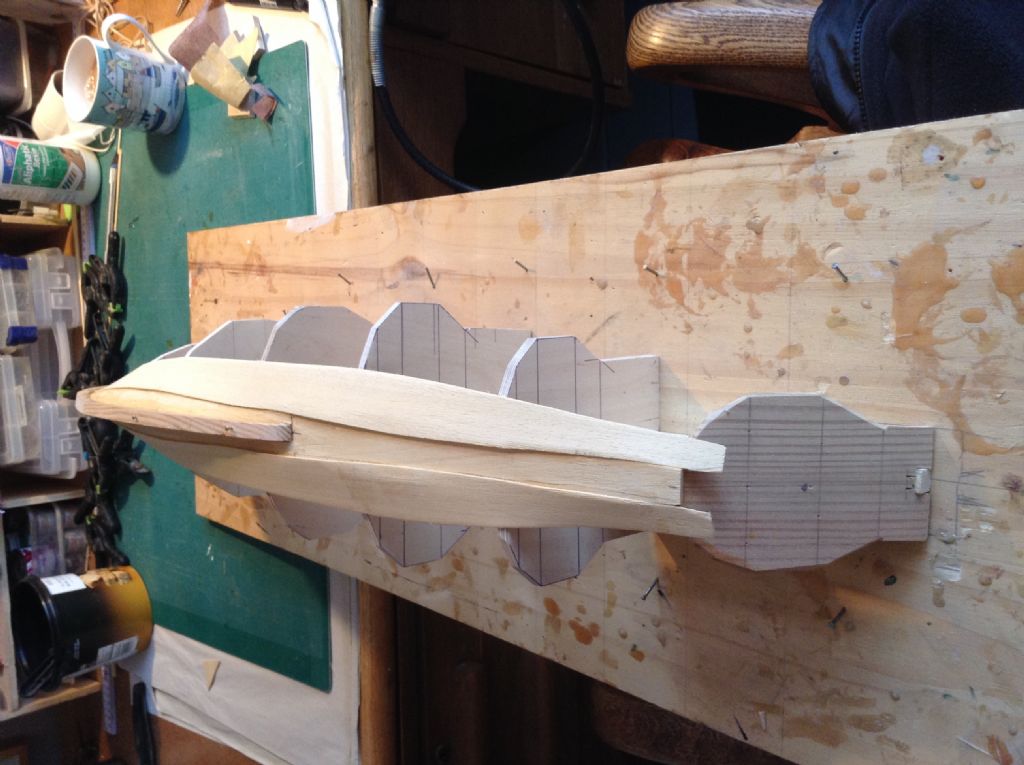

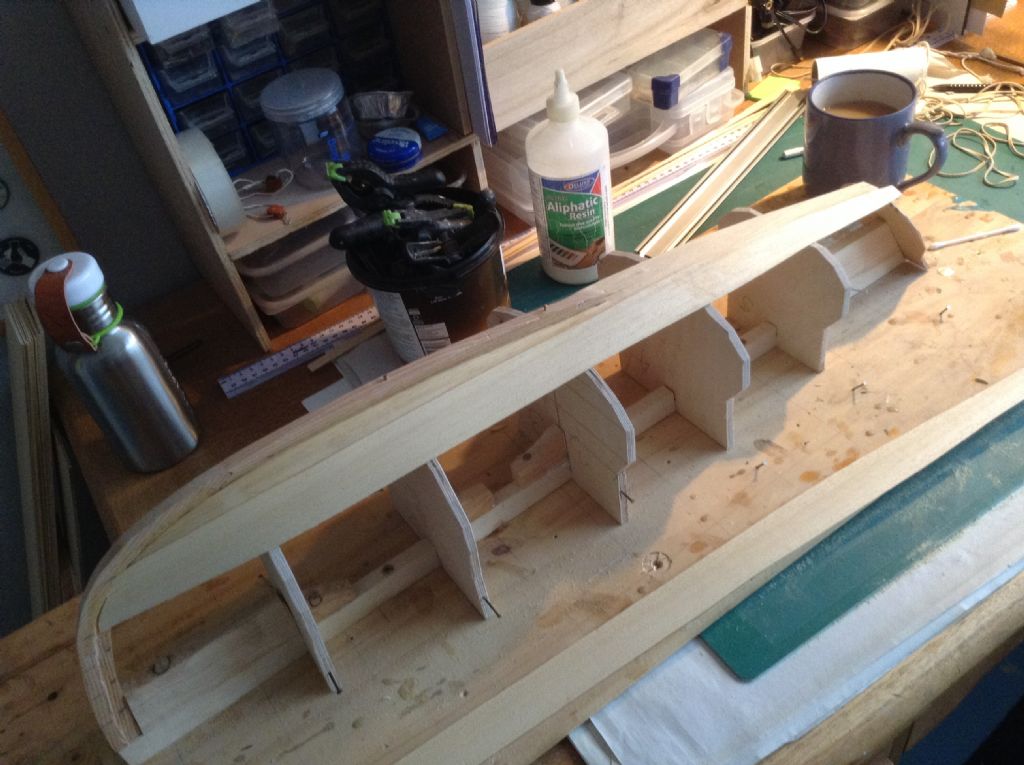

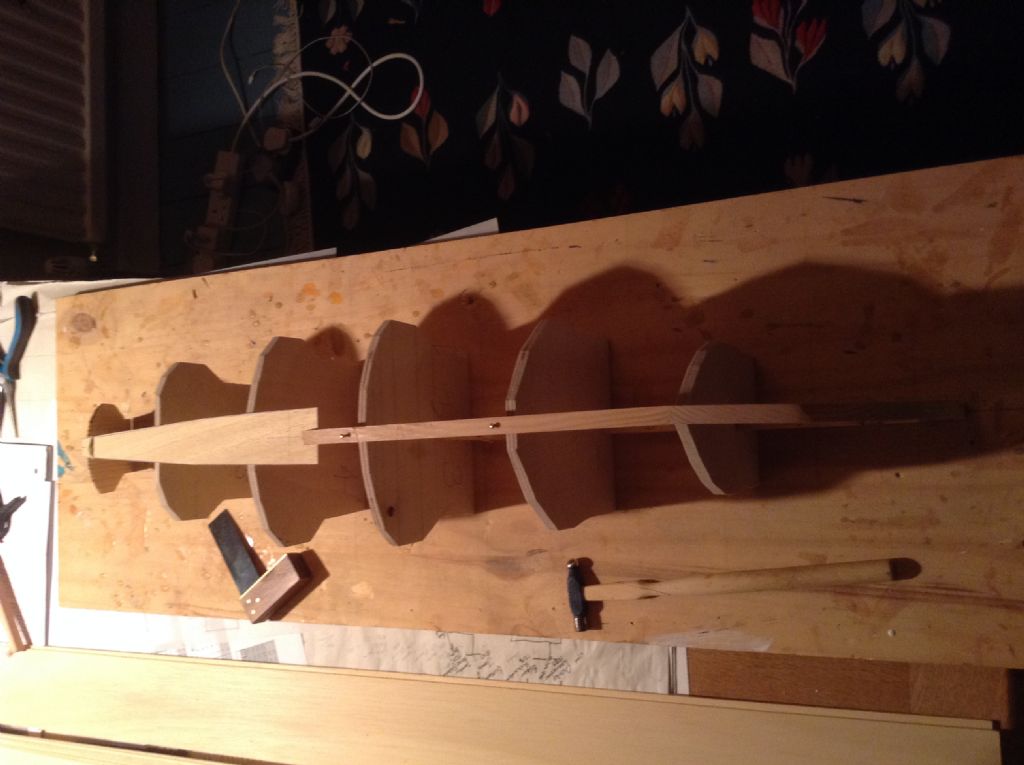

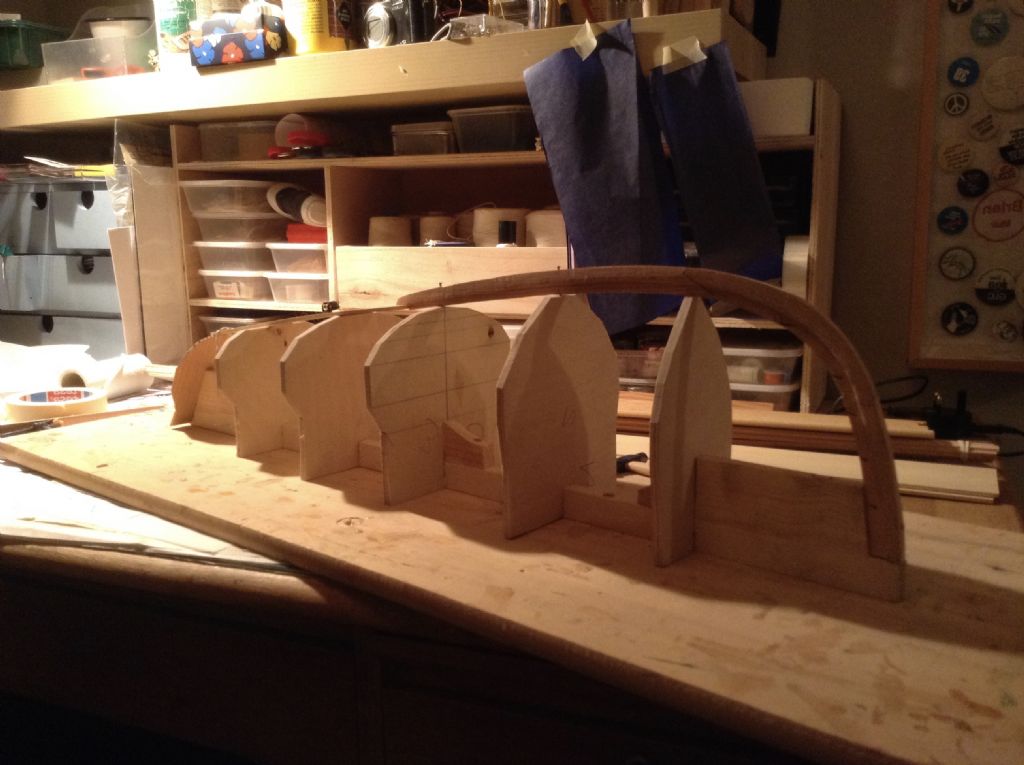

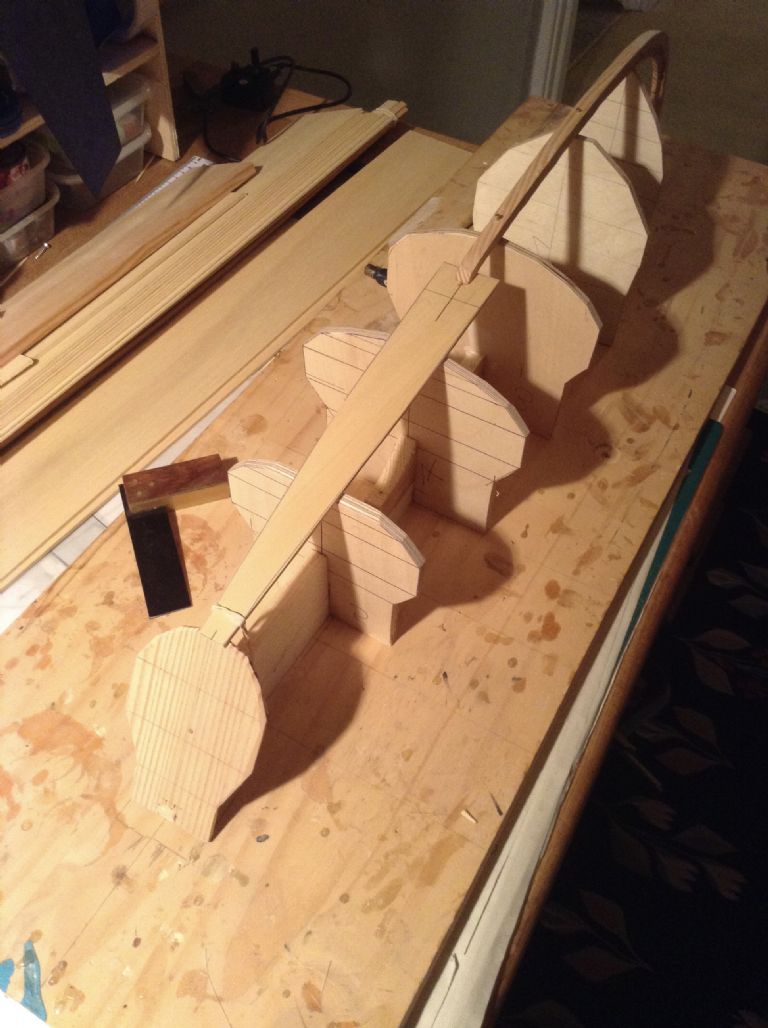

Slow progress as there have been other demands on my time, but have now built the frame, temporarily fixed the transom to it and now I've made the three sections of the keel, called the "deadwood" on the plans, joined them using two scarf joints, and the ram plank which is the stern section of what would be the keel on most boats.

Edited By Brian Muir on 15/02/2018 20:11:24
2 March 2018 at 08:26 #76088
Brian Muir
Participant
@brianmuir84327

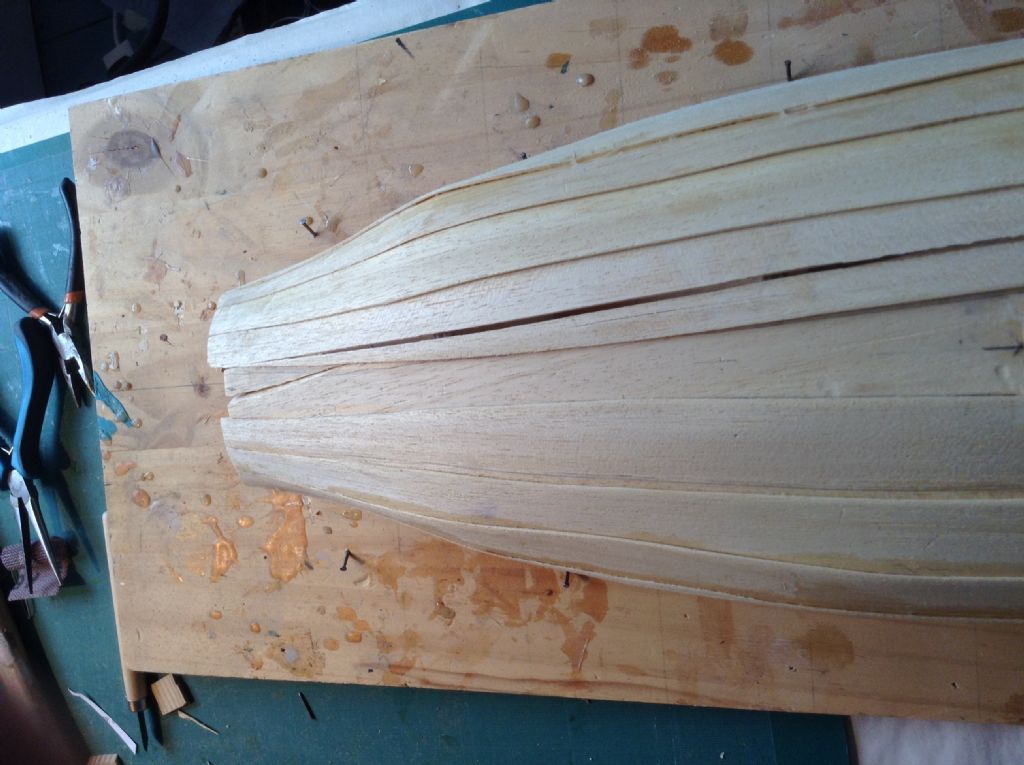

Side planks in place
2 March 2018 at 08:28 #76089
Brian Muir
Participant
@brianmuir84327

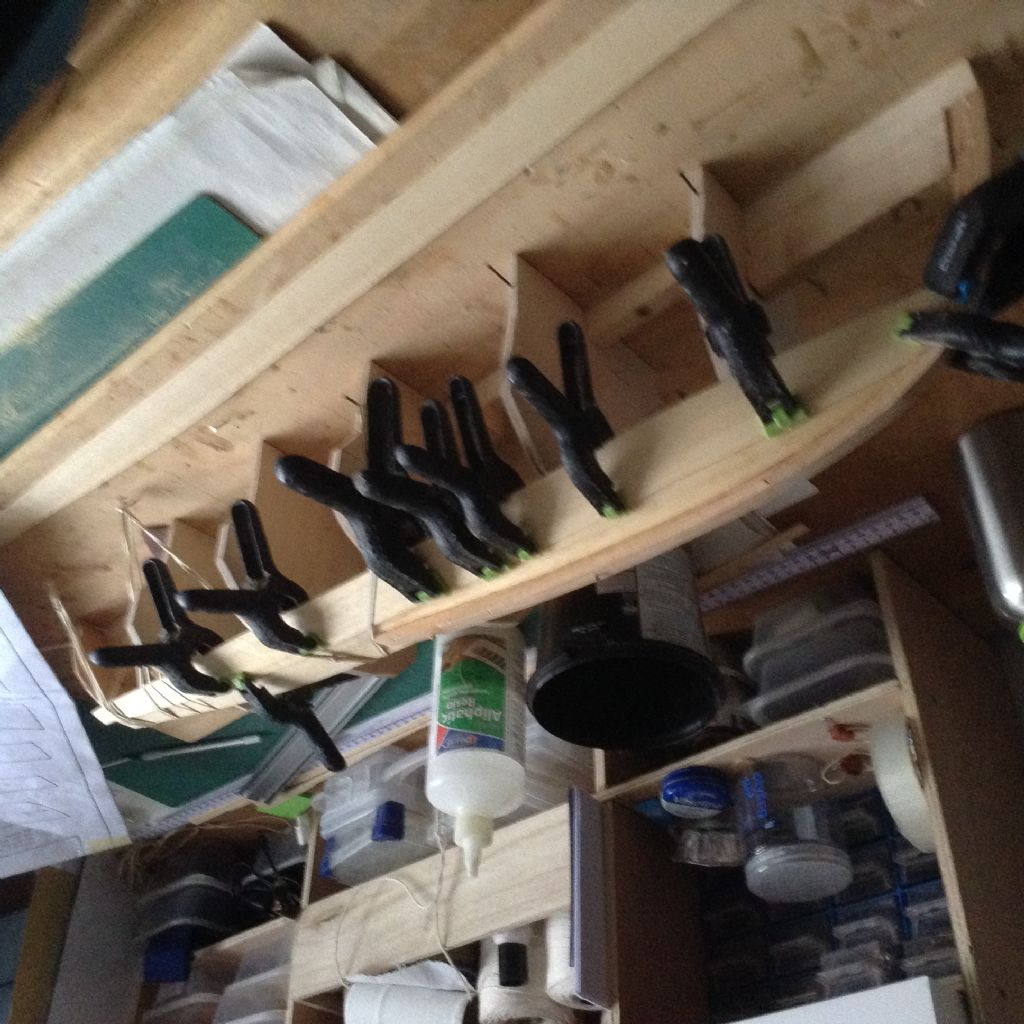

Plank 1 in place, the plans give an oversize template which is then trimmed and sanded to fit.
2 March 2018 at 08:30 #76090
Brian Muir
Participant
@brianmuir84327

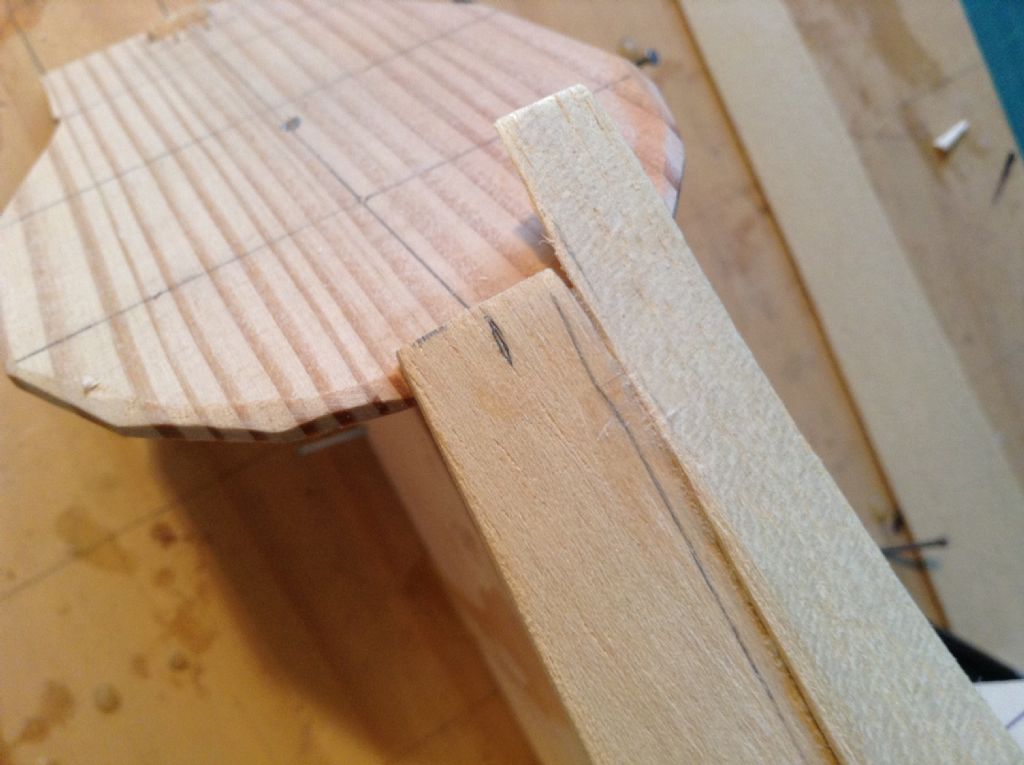

My first attempt at "geralding" where the plank end is tapered and shaped to sit next to the preceding plank at the transom and bow
2 March 2018 at 13:55 #76095
Brian Muir
Participant
@brianmuir84327

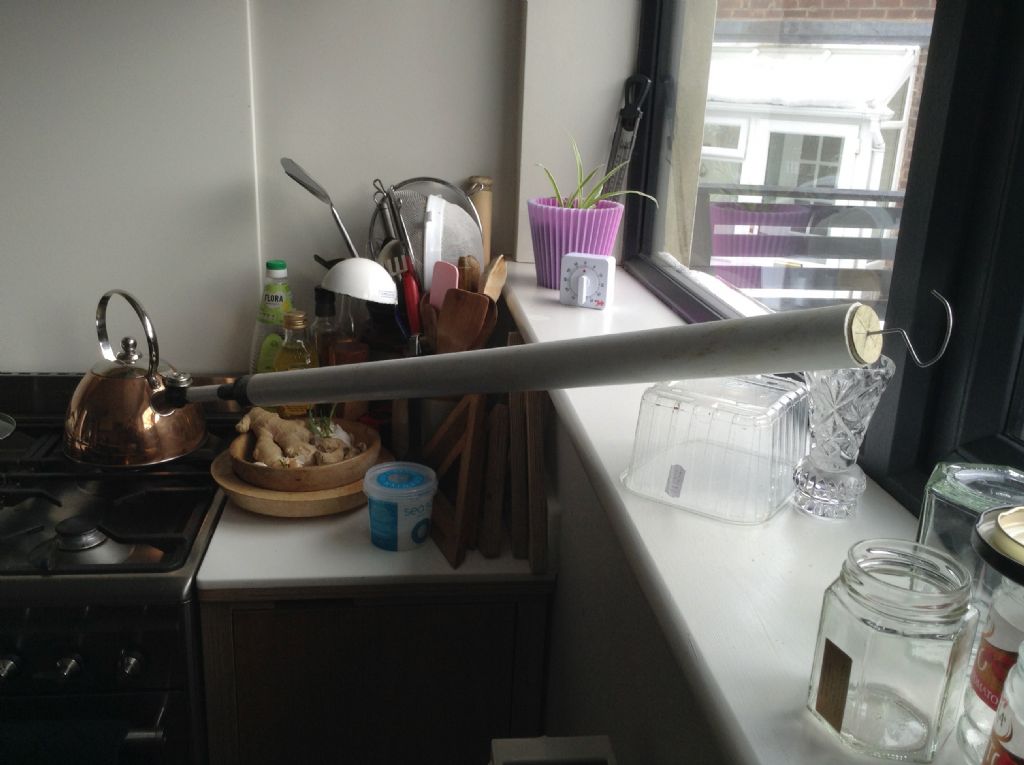

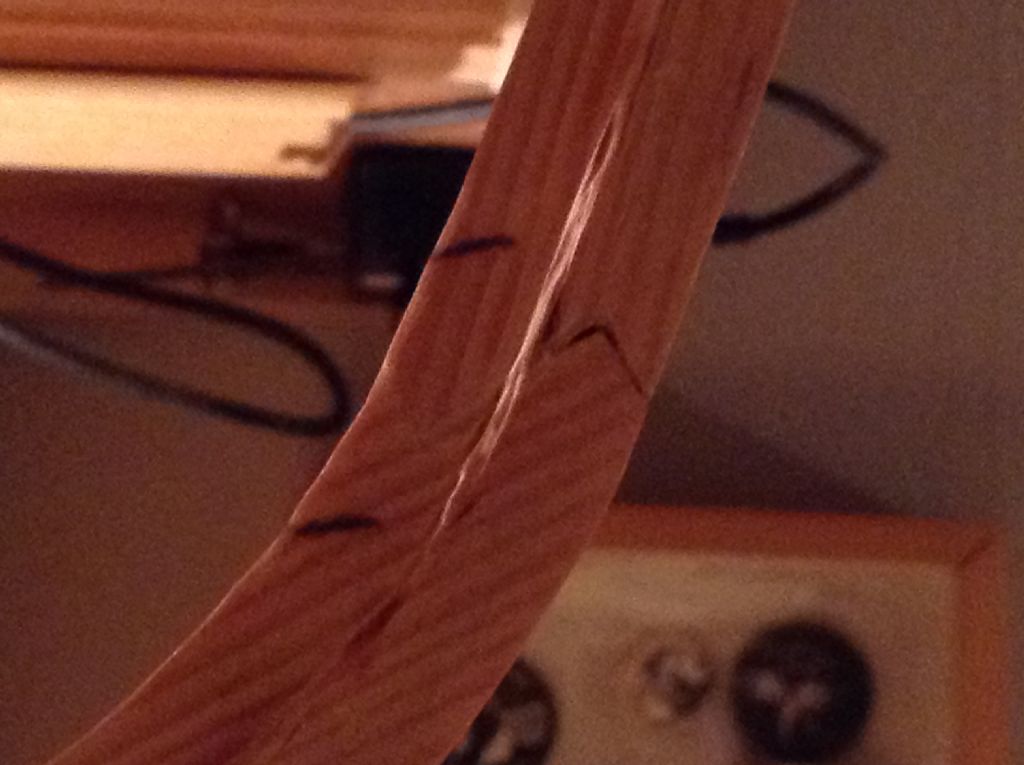

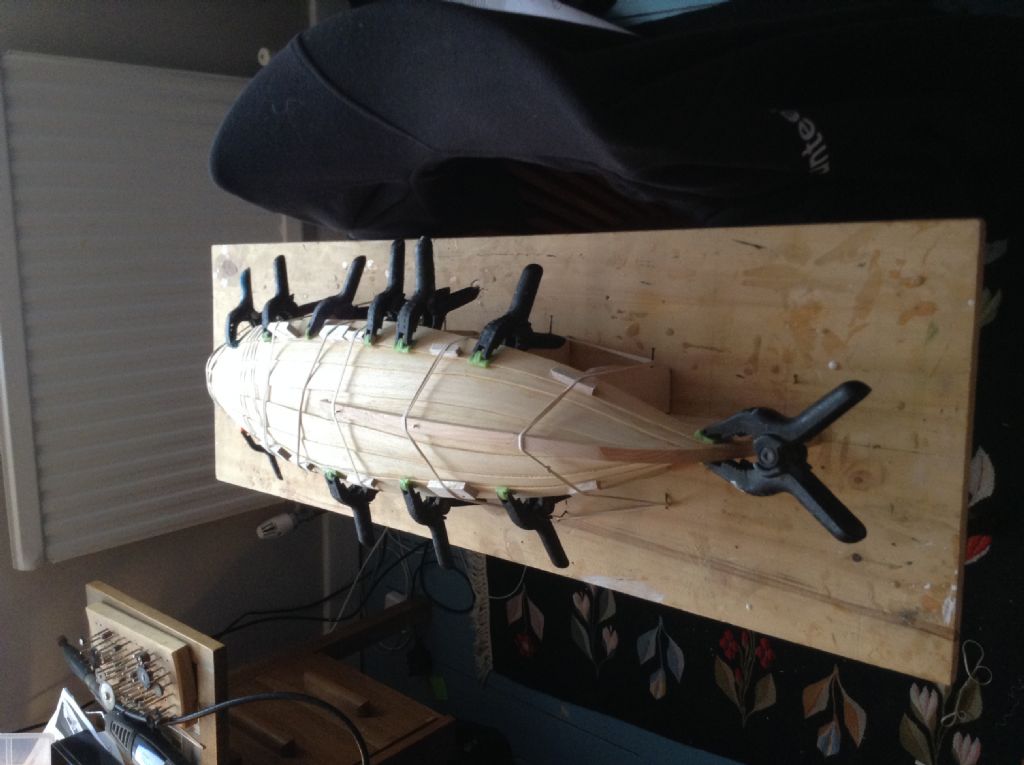

Using Obechi 1/16" thickness, which is very fragile and cracks along the grain with any rough handling! Hence the steaming contraption below is necessary before you offer up the plank to make any twist or bend to the hull!
3 March 2018 at 13:39 #76110
Brian Muir
Participant
@brianmuir84327
Both first planks in place
3 March 2018 at 13:41 #76111
Brian Muir
Participant
@brianmuir84327
2nd planks fitted on both sides, need to be careful now to keep them symmetrical.
4 March 2018 at 11:28 #76127
Brian Muir
Participant
@brianmuir84327
Plank 3 fitted on both sides
4 March 2018 at 11:30 #76128
Brian Muir
Participant
@brianmuir84327
The transom showing the "geralding", where the planks change from overlapping along their length to butting up to each other at the stern
6 March 2018 at 10:15 #76152
Brian Muir
Participant
@brianmuir84327

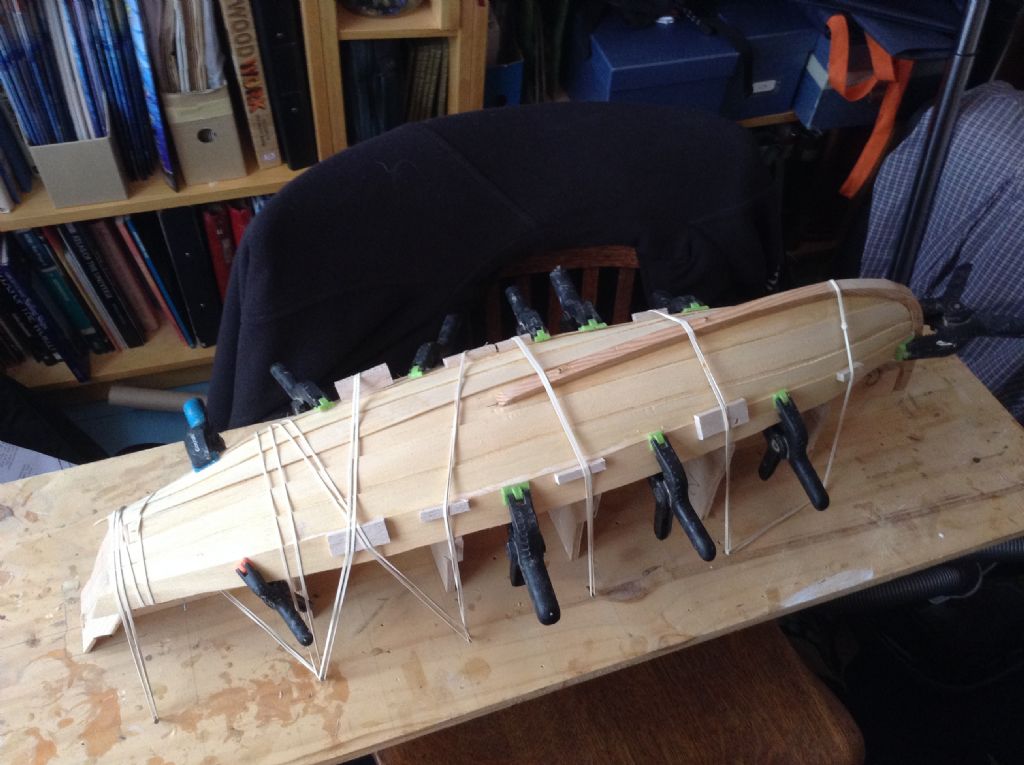

Plank 4 in place on each side, the hull now has to be removed from the construction frame so that plank 5 can be fitted.
6 March 2018 at 10:19 #76153
Brian Muir
Participant
@brianmuir84327

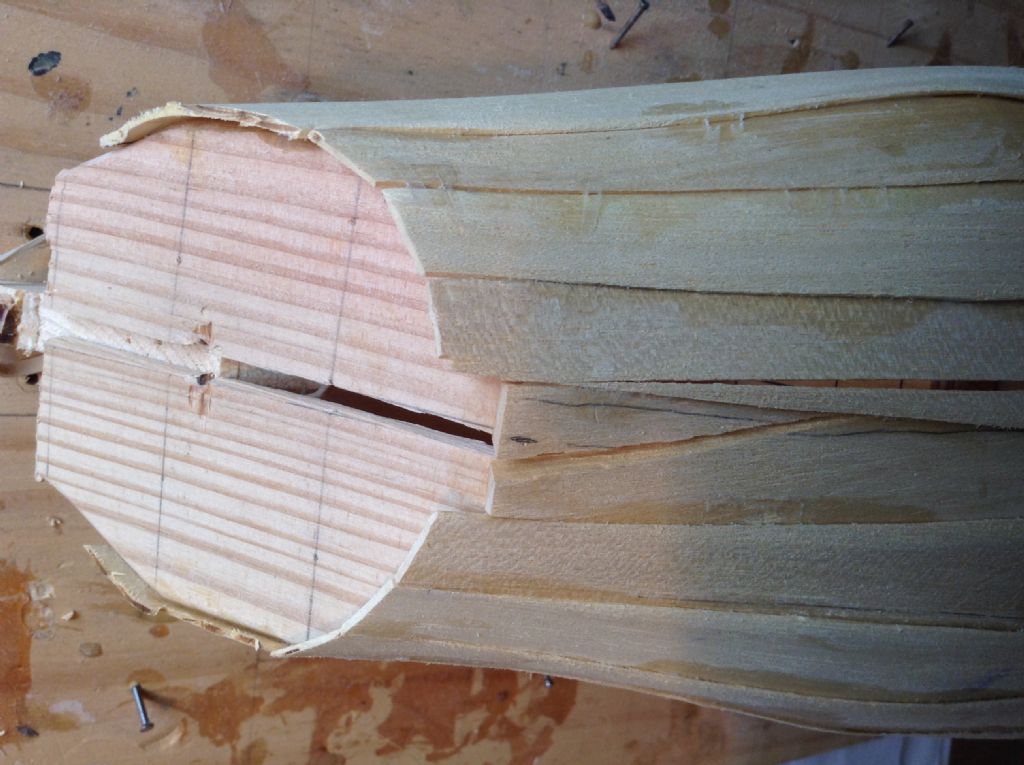

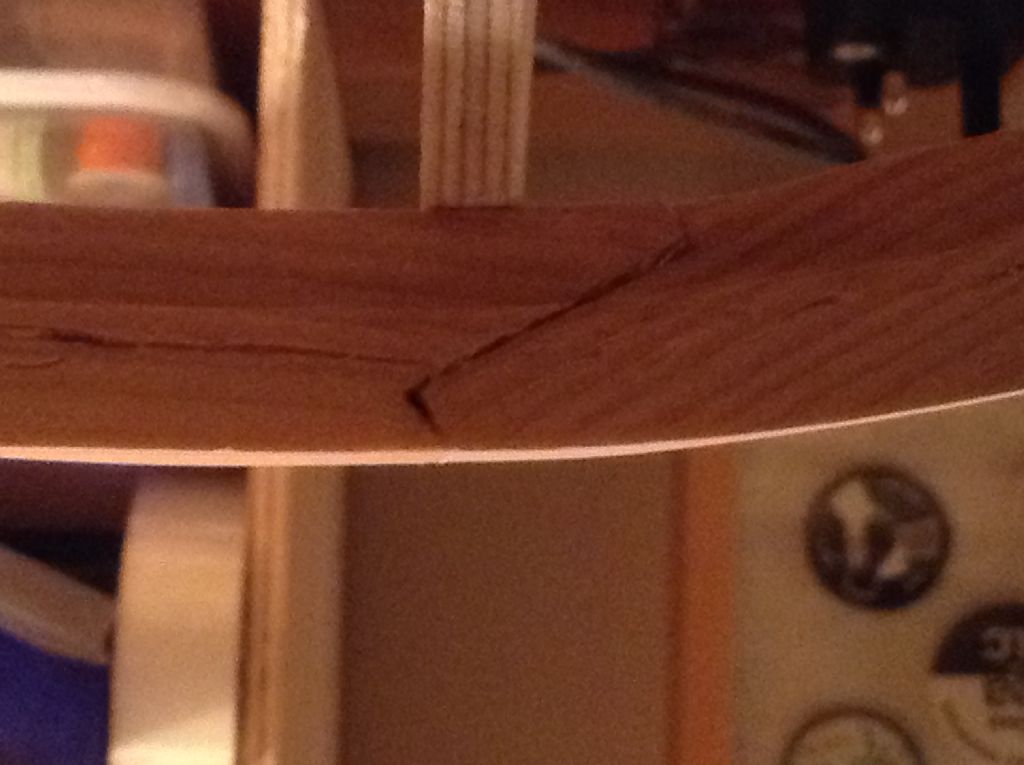

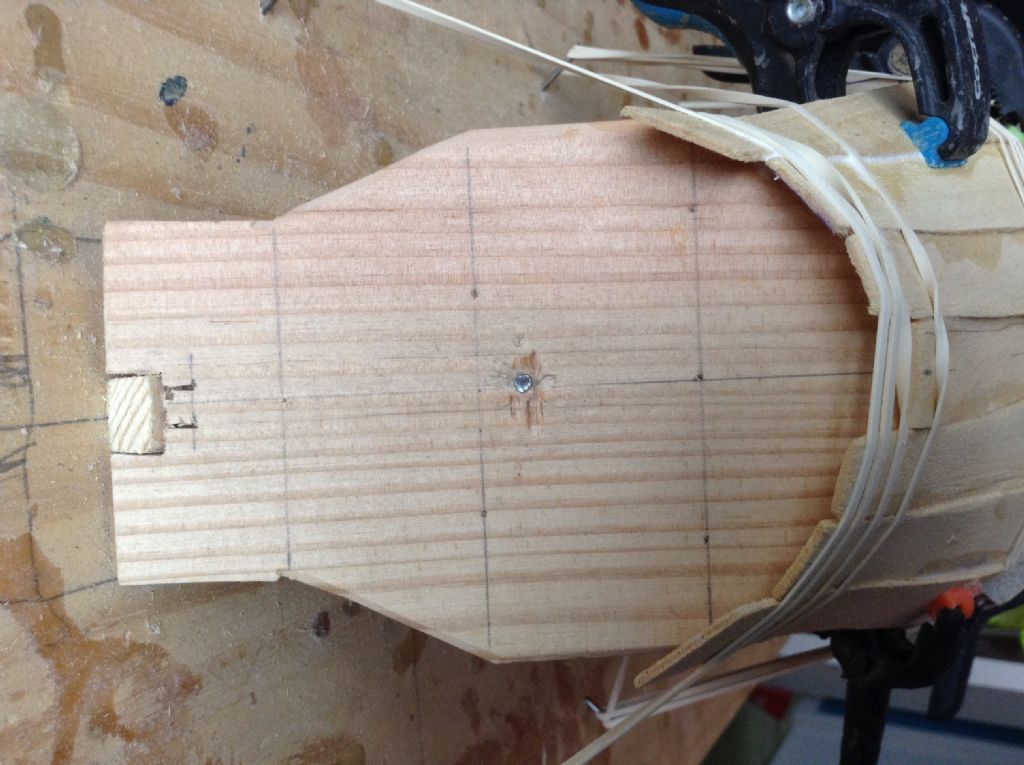

DISASTER! some glue had found its way between the transom and the frame and also at the bow…. so when I tried to lift the hull off the frame it cracked the transom and along plank 1 on the port side.

"Fortunately" the obechi is so brittle it cracks cleanly along the grain, the spruce transom also cracked cleanly, so repairs can be made.
