  • #115748
    mmcp42
    Participant
      @mmcp42

      greetings all

      I’m new round here

      thought I’d start posting about the Clyde Puffer I’m about to start building

      I got the plans from Model Maker back in 1978; got as far as building the keel and frames, and, of course, the propellor

      then life and family got in the way

      kids now (almost) grown up and granddaughters now filling that gap

      (so much better than children, in fact, next time, I’m cutting out the middle man!)

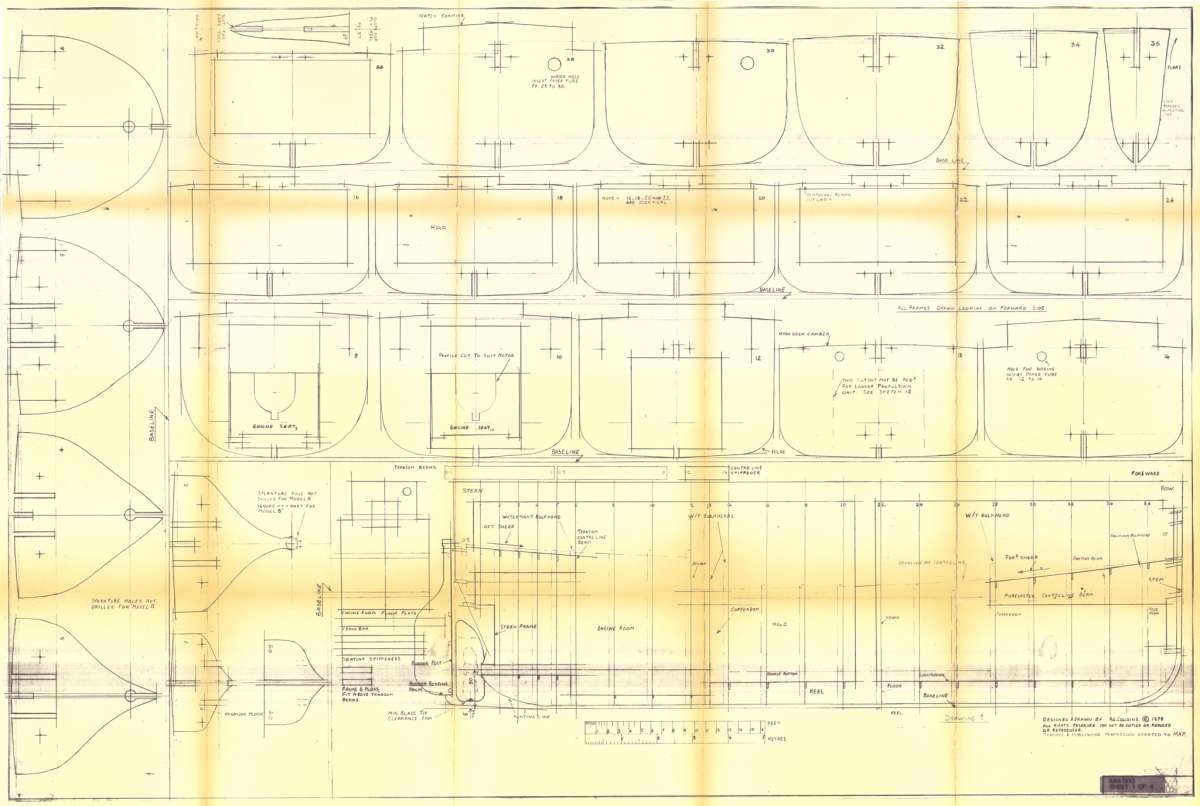

      anyway, the plans are yellow and faded,

      scan145-1 2

      so I decided to go high-tech

      had the local print place copy them to PDF – and started converting them ready for laser cutting

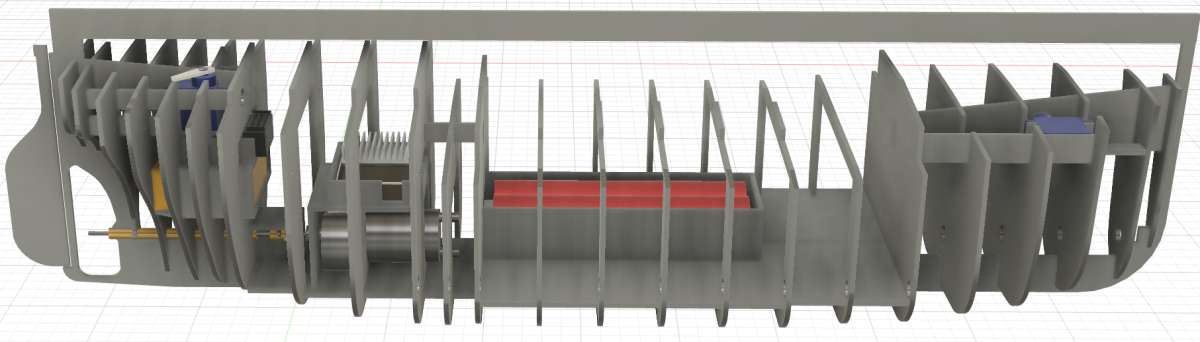

      keel and framework all done (one sheet of the plans)

      after a lot of work with Fusion360 I have a set of shapes ready to laser cut

      Screenshot 2023-11-13 at 20.32.42

      Nephew has a cutter so will be visiting him very soon

      cheers all

      Advert
      #115755
      James Hill 5
      Participant
        @jameshill5

        Hi Mike, welcome to the Forum.

        The information on the steering system was provided by Colin in his blog on his building of a Greek Fishing boat in Build Blogs.The connection with the Puffer is that they were chain steering and his design was almost identical to what I was working out.

        At present I`m just making the rudder and working out how many hinge points to use and the best place to position them.

        Another modeller is building a Puffer in tin plate. An interesting build to follow.

        Best of luck with your build,

        Jim.

        #115757
        James Hill 5
        Participant
          @jameshill5

          I forgot to mention that I got the chain for steering from my local Hobbycraft shop.

          Jim.

          #115759
          Len Morris 2
          Participant
            @lenmorris2

            Hi Mike, welcome to the site and to the unofficial Puffer section!  🙂  For whatever reason it seems we have a Puffer pandemic.

            I like the sacrificial top bar between the bow and stern posts.  It’ll give a good datum when you want to flip the hull upside down.

            Follow Jim’s thread.  It’s a wealth of information and a top notch build.

            Len



            #115782
            mmcp42
            Participant
              @mmcp42

              hello Len

              yes, there do seem to be a lot of Puffers about

              Hope I live up to the amazing standard I’ve seen here

              will be watching them all for hints and tips as my build progresses 🙂

              #116065
              Colin Bishop
              Moderator
                @colinbishop34627

                During the changeover, Banjoman (Mattias) comprehensive topic on his Eilean Mor Puffer went missing. It is now visible again.

                Eilean Mor

                Colin

                #116068
                mmcp42
                Participant
                  @mmcp42

                  @Colin: oooh thanks for that:)

                  #117247
                  mmcp42
                  Participant
                    @mmcp42

                    apologies for the radio silence from me

                    visit to nephew (and his laser cutter) never happened, so I’ve been working away at plan B – build my own laser cutter

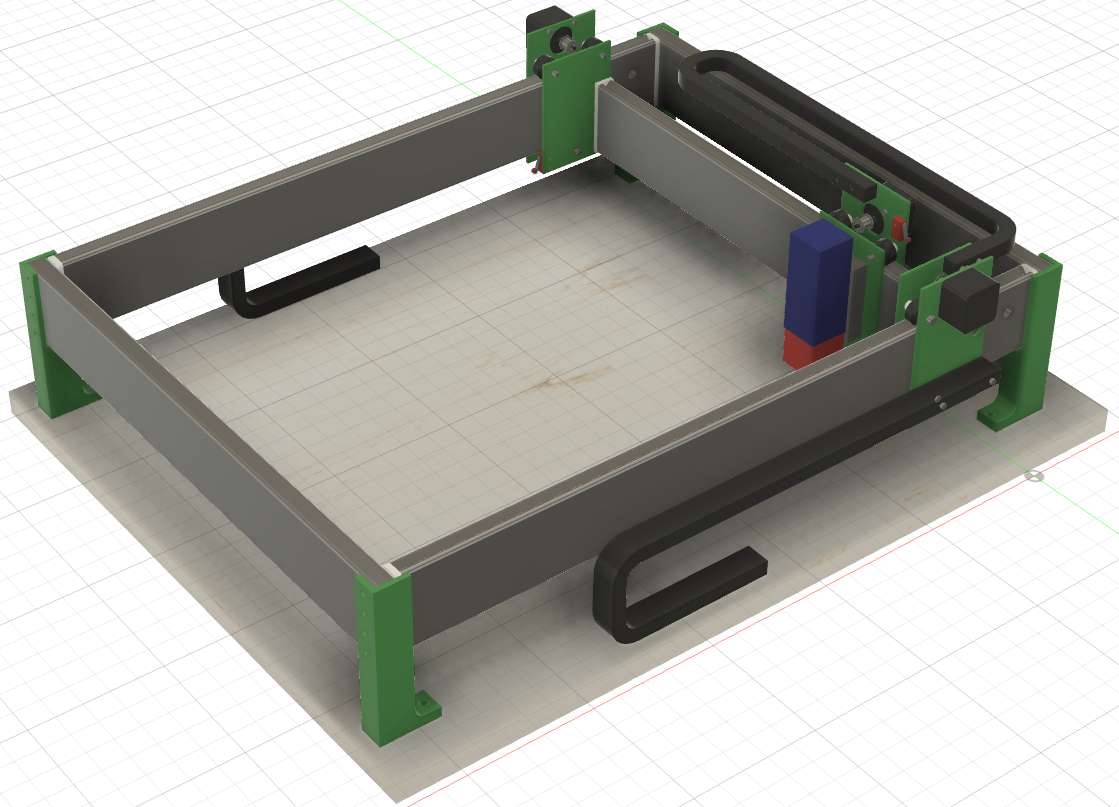

                    after some furious Fusion 360 work, I present the puffer cutter:

                    Screenshot 2023-12-19 at 16.52.34

                    cutting area is 607 x 417, with a maximum height of 38mm (but that can easily be increased by printing taller feet 🙂 )

                    the size is based on some aluminium extrusion I had left over from when I built a CNC mill many years ago

                    add in 31 printed parts, 3 stepper motors (twin X-axis), 3 drive sprockets, 3 timing belts, 9 idlers/rollers, sundry3 drag chains I found in my workshop,  nuts and bolts and a baseboard; not to mention a 10W (that’s real optical watts) and we’re ready to start assembly. More pictures as the work progresses

                    it’s driven by an Arduino running GRBL with DRV8825 stepper drivers on a protoneer shield

                    cheers

                    Mike



                    #117249
                    Colin Bishop
                    Moderator
                      @colinbishop34627

                      Impressive! Just imagine what the crews of those old Puffers would have made of this technology. They would probably have regarded it as magic!

                      Colin

                      #117267
                      James Hill 5
                      Participant
                        @jameshill5

                        Hi Mike,

                        That’s certainly some piece of kit you’re building there.

                        My laser cutter is mark one eyeballs ( mostly worn out now! ), a Stanley knife and various saws!

                        Looking forward to following your build.

                        Regards,

                        Jim.

                        #117312
                        Len Morris 2
                        Participant
                          @lenmorris2

                          Looks brilliant for mass production.  Are we going to have Puffers everywhere!  Well done.

                          Len

                          #117315
                          mmcp42
                          Participant
                            @mmcp42

                            @Len

                            that wasn’t my aim, but if anyone wants as set I’d be happy to oblige 🙂

                            Mike

                            #118259
                            Fred Ellis 1
                            Participant
                              @fredellis1

                              Hi Make

                              I was wondering how your Puffer is going?

                              Fred

                              #118261
                              mmcp42
                              Participant
                                @mmcp42

                                Thanks for asking Fred

                                puffer itself is on hold while I finish the laser cutter.
                                redesigned it to reduce the mass being thrown around.  Almost ready to fire up the laser!

                                pictures soon

                                cheers

                                Mike

                                #118284
                                Fred Ellis 1
                                Participant
                                  @fredellis1

                                  Thanks Mike, hope you get back to it soon.

                                  Fred

                                  #119633
                                  mmcp42
                                  Participant
                                    @mmcp42

                                    finally got the laser cutter finished

                                    cutting area is 410mm x 610mm which is plenty big enough to cut the keel in one piece

                                    just wondered which adhesive people use

                                    keel is 3/32″ ply, the ribs are 3/32″ basswood

                                    any advice most gratefully received 🙂 thanks

                                    Mike

                                    #119635
                                    Richard Simpson
                                    Participant
                                      @richardsimpson88330

                                      I always use a white PVA glue on wood.  Be prepared for a different answer from every member!

                                      #119638
                                      mmcp42
                                      Participant
                                        @mmcp42

                                        thanks Richard

                                        one vote for white PVA

                                        🙂

                                        #119647
                                        Fred Ellis 1
                                        Participant
                                          @fredellis1

                                          Hi Mike

                                          I use a Polyurethane glue (CLEAR GORILLA GLUE POLYURETHANE ADHESIVE ), it takes a bit longer to set than PVA. As Richard said we all have our go to wood glue,

                                          Fred

                                          #119649
                                          mmcp42
                                          Participant
                                            @mmcp42

                                            thanks Fred

                                            #119653
                                            James Hill 5
                                            Participant
                                              @jameshill5

                                              The glue I’ve been using lately is your  standard Gorilla Glue, the white stuff.

                                              I’m also using their 100% waterproof glue , which is brown in colour in a small bottle and a bit like thin treacle! The only thing with that one is you have to use it very sparingly, as it expands into the surfaces as it foams. So far not made too much mess!!.

                                              Jim.

                                              #119656
                                              mmcp42
                                              Participant
                                                @mmcp42

                                                Thanks Jim

                                                think I’ll avoid the brown variety then!

                                                cheers

                                                Mike

                                                #119665
                                                Len Morris 2
                                                Participant
                                                  @lenmorris2

                                                  Have a look at Cascamite.

                                                  Len



                                                  #119668
                                                  Colin Bishop
                                                  Moderator
                                                    @colinbishop34627

                                                    Have a look at Cascamite.

                                                    And then buy something else! My particular preference is Deluxe Aliphatic.

                                                    Colin

                                                    #119673
                                                    mmcp42
                                                    Participant
                                                      @mmcp42

                                                      @Len

                                                      thanks – a new contender

                                                      @Colin – obviously not a fan!

                                                      cheers both

                                                      Mike
