[Paul TParticipant @pault84577]

Hi Mike

Thank you for your comments.

Please don't ever worry about making suggestions.

A cathedral hull is one of the types that I looked at when designing Thor and whilst it didn't suit my needs for this project as didn't sit deep enough in the water however I did use a cathedral derivative when working on RiverCat for exactly the reasons that you have stated.

Thanks again

Paul

[Paul TParticipant @pault84577]

Dear All

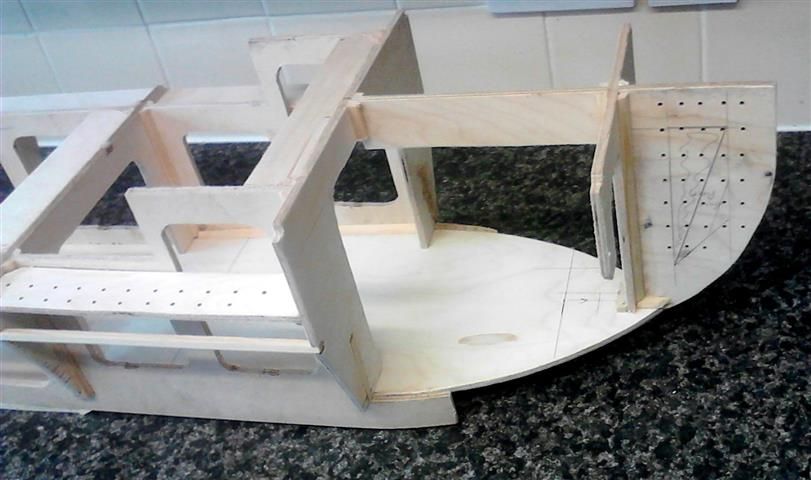

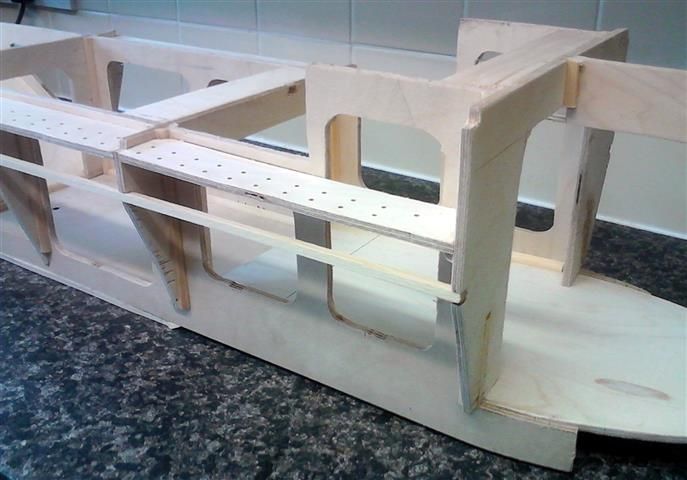

An update on progress with the sailing prototype.

The main framework is made from 7mm birch ply (5 core) with 5mm x 5mm stringers.

Overall length 4ft, width 1ft

Paul

[Andy CParticipant @andyc56856]

Looking pretty good so far Paul. Don't know how you do. Taking a completely new design from head to drawing board to initial model mock up.

Still I am pretty new to model boats so have a lot of catching up to do.

Andy

[Bob Abell 2Participant @bobabell2]

Hello Paul

Are you still going ahead with the Steering Comp option?

What about the width problem?

Can't understand the reason for all that would construction?

Just curious

Bob

[Dave MilbournParticipant @davemilbourn48782]

Looks as sturdy and elegant as an outside privy, Paul. I wish I was a plywood merchant in Lymn……………….
DM

[Paul TParticipant @pault84577]

Hi Bob

The reason behind all of the wood is strength, the boat will have two powerful motors and the hull has to be heavily built to evenly distribute the load especially when towing.

Not given up on steering competitions as it will be fitted with four thrusters.

Paul

[ashley needhamParticipant @ashleyneedham69188]

It is so much easier building a boat using substantial bits of wood rather than messing about with bits the size of matchsticks.

When I made the Nelson, I actually had the hull clamped in the workmate and used a plane to start shaping the bottom, followed by a belt sander!

Ashley

[Paul TParticipant @pault84577]

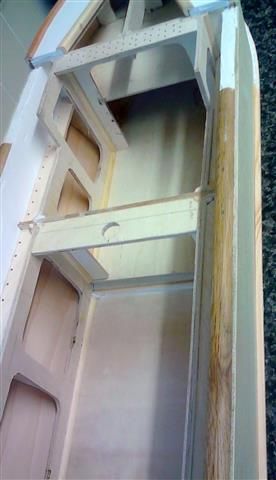

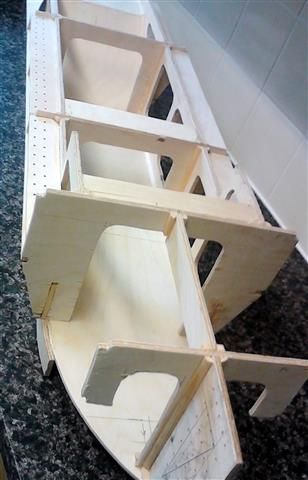

I've added some more parts to the sailing prototype frame.

[Andy CParticipant @andyc56856]

Hi Paul

Can I ask how you take a picture or Photo or design, which ever you have, and turn it into a build plan. I would like to try something for my son and have an idea of what I want but no clue as to how to transfer the idea into a plan.

Cheers

Andy

[Paul TParticipant @pault84577]

Hi Andy

No problem with helping.

First things first…..what do you want to build and how big?

Paul

[Andy CParticipant @andyc56856]

This is going to sound silly, but I want to reproduce an Octonauts Gup B, not necessarily a diving version but maybe just a floating one to start with.

[Andy CParticipant @andyc56856]

Sorry should have added, not too big.

Andy

[Paul TParticipant @pault84577]

Andy

It doesn't sound silly and having looked at the item in question I have to say that once you take the cartoon aspect out of the equation it is quite a challenging design to reproduce as it is all curves.

A very interesting challenge but before we go any further you must decide on an approximate size as this will have a huge influence of the design and materials used.

Paul

pm sent

[Paul TParticipant @pault84577]

Just so everyone knows what we are talking about

This would be a very challenging build but quite a lot of fun to see working.

Paul



Edited By Paul T on 22/03/2014 18:01:03

[Bob Abell 2Participant @bobabell2]

Hello Wraith

I would recommend you buying the actual toy and scale it up

You would have more fun also, if it was a dynamic sub version too

Bob

[Paul TParticipant @pault84577]

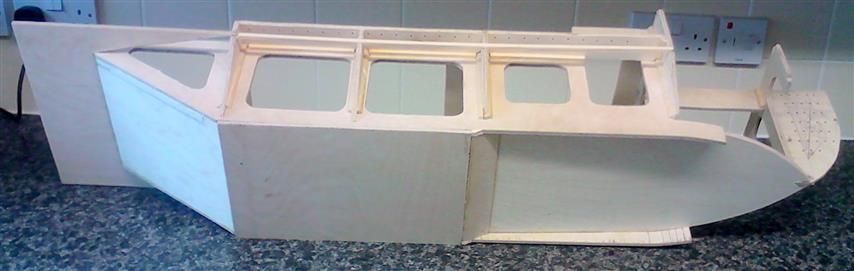

Thor is almost skinned with 4mm birch ply and is getting nice and strong… and heavy.

Looking around for a big pair of heavy duty 24v motors.

Paul

[Bob Abell 2Participant @bobabell2]

Any luck with the motors yet, Paul?

I like the idea of a powerful tugboat, towing the club`s rescue dinghy, round the lake idea?

Now yer talking!

Or a chunky steam engine?…..Coal fired of course!

Bob

[Paul TParticipant @pault84577]

Hi Bob
I have a line on a couple of 24v half horsepower motors that I am trying to get hold of

Paul

[Bob Abell 2Participant @bobabell2]

So, no marks for the dinghy towing idea?

Bob

[Paul TParticipant @pault84577]

Bob

With what I have in mind you will be able to pull a whole fleet of dinghies.

Paul

[Paul TParticipant @pault84577]

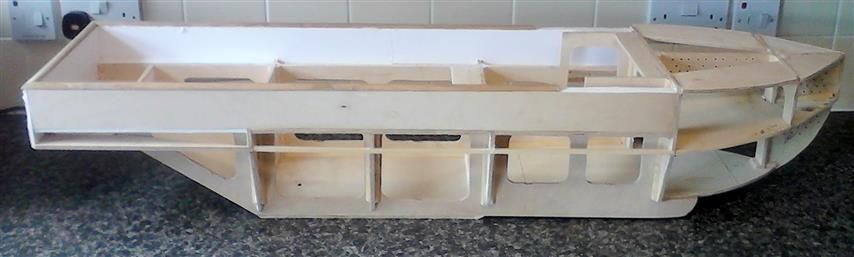

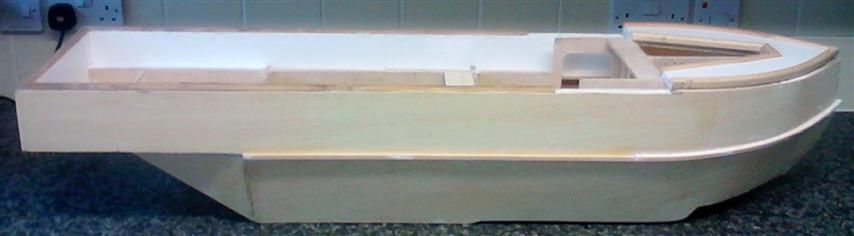

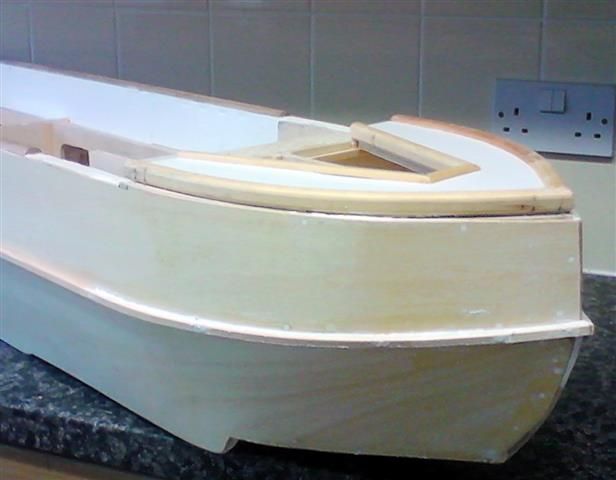

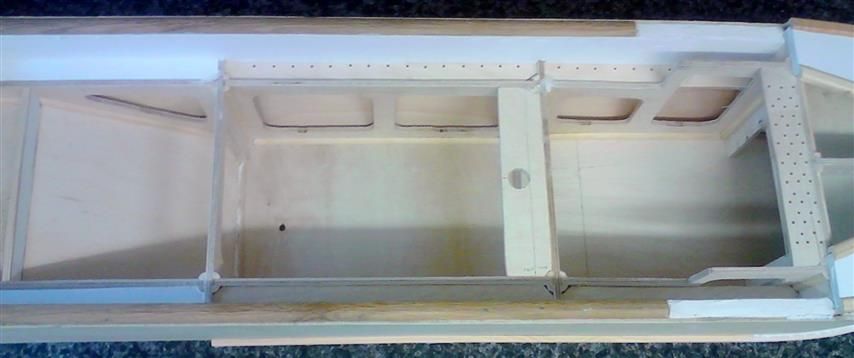

Finished skinning the 4ft version hull.

I have been able to use lightweight panels in the non critical areas and coupled with the many weight saving cut outs I have managed to keep the construction weight down.

There is plenty of room inside for motors, pumps and batteries.

The hull is very strong and rigid.

Forming the skin around the curve of the bow proved to be quite entertaining as, even after steaming I still had to use screws to hold the skin in position whilst the glue set.

Paul

[Paul TParticipant @pault84577]

Dear Captain Bob

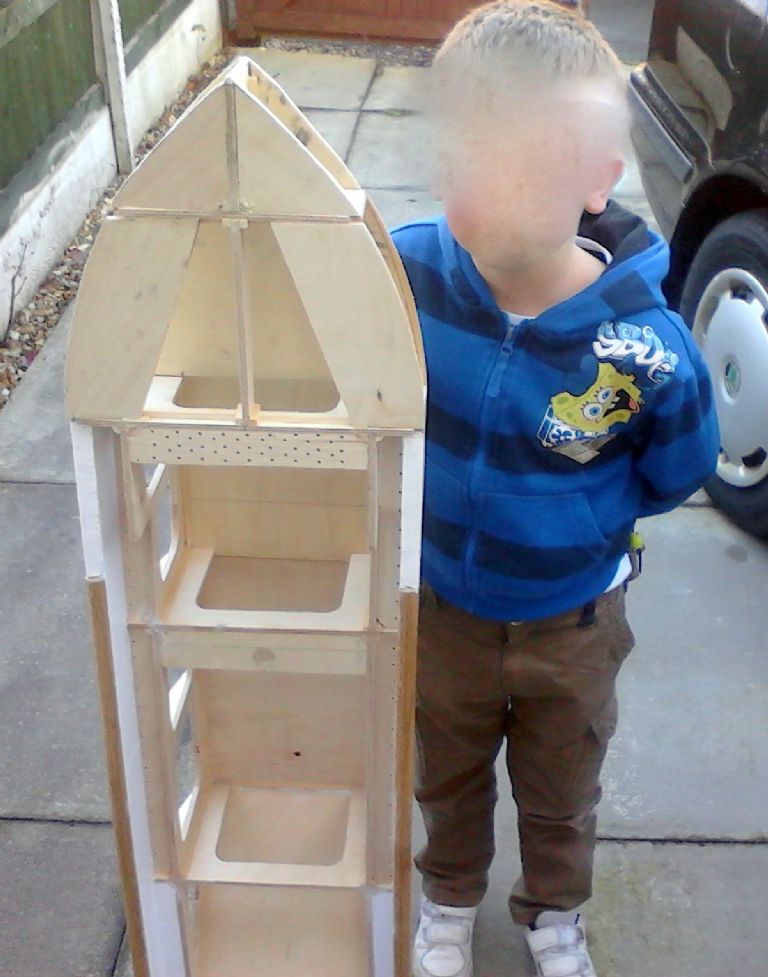

As I haven't done a photo with a ruler (to judge size) I did one with a grandson.

Paul

[Bob Abell 2Participant @bobabell2]

Hello Paul

It's a pity you have had to blur his face?

I saw a Tug towing comp advertised today….I think it was in April's edition of ModelBoats

I've never seen a tug towing comp…..What does it entail?

Bob

[Paul TParticipant @pault84577]

I don't know Bob I guess its towing those big container ship models around a pond.

With the 4ft Thor I'm going for something that will tow a full size barge along a canal.

Paul

[Paul TParticipant @pault84577]

I don't know if Confucius ever commented on the ability of the young to see the obvious but I do know that its odd how a seven year olds perspective can enlighten your view of a design and show you a simpler way to build a troublesome part.

I know that grandfathers always say that their grandchildren are 'bright as buttons' but my grandsons straightforward approach to solving problems has left me stunned, and feeling a little foolish, for not seeing the obvious.

Paul
