Bell wreck at Barmouth

[Bob Abell 2Participant @bobabell2]

There is a museum at Barmouth called the Bell Wreck Museum.



The ship was carrying a cargo of marble and a Bell and is dated as 1677



Just for added interest…..All the cannons, muskets and pistols were found to be loaded and ready to fire!



All the cannons were a type of breech loader………………….eh?…….1677?



All the cannons on HMS Victory were muzzle loaders……..eh?…….1808?



Doesn`t this strike one as odd?



Any experts out there who can explain why the Victory had muzzle loaders?



Just a passing thought………..Bob tidying up

[Bob Abell 2Participant @bobabell2]

[Paul TParticipant @pault84577]

Bob



Its easy to explain why Victory had muzzle loaders but why the ship in 1677 had breech loaders is not so easy to fathom.

I shall have a look and try to figure this out.



Paul

[Bob Abell 2Participant @bobabell2]

I think Mary Rose had the odd  “looseblock”  type breech loader…………..eh?



And then……………..What about those crazy muzzle loading guns on the Victorian Battleship just recently posted by Ashley………..can`t recall the name but it was something like the The Inflexible or the Intrepid



Bob

[Paul TParticipant @pault84577]

Bob

According to the historical record the ship had one wrought iron breech loading gun, this type of cannon was called a Basliisk and it this form was first introduced in the 16^th century.

The cannon on the victory were muzzle loaders because the science metallurgy hadn’t advanced enough to produce steel that wouldn’t explode when used as cannon and they couldn’t machine cast iron to create breech loaders.



Paul



When are you going to Ellesmere?

[Bob Abell 2Participant @bobabell2]

The ship had at least four breech loaders………………..They are on show in the museum…….and were about 2″ bore…….with X-rays showing the grapeshot etc



Thanks for the Victory info……………I would have thought that breech would have developed in the following 130 years……………..breech loaders with thicker barrel walls?



But…………..Obviously not!



Bob……………Shot down in flames!

[Paul TParticipant @pault84577]

Bob



The cannon builders of the time did try thicker walled guns but then came up against the problem of extra weight…ergo the ship could carry less cannon…..catch 22



Your not shot down in flames and this is a great subject to delve into.



Paul

[ashley needhamParticipant @ashleyneedham69188]

Bob.A lot of the VERY early cannon WERE breech loaders. A sort of tankard shaped affair, with a tapered rim, this was preloaded and stuffed in the breech end and held there with a wooden wedge. The advantage was a much quicker rate of fire, however the gas-seal was less than perfect and got worse after every firing. A problem that dogged breech loaders until the late 1800s, witness the Armstrong 110lb guns on the Warrior, that were known as “double enders”, for their propensity for blowing the breech screw out. The guns on your ship were likely to be small ones at that time, and i believe the breech systems in use were ok for smaller weapons.  The rifled-muzzle loading system in use in British ships in fact produced a superior gun until fairly late on, for a variety of reasons, amongst them the use of gunpowder, and an unsatisfactory breech sealing  system  Ashley

[Bob Abell 2Participant @bobabell2]

Paul



Only just seen your microscopic footnote!



I`m going to Ellesmere on Saturday and if necessary…………..Sunday an` all!



Wiil arrive at 11 ish and stay till about 4 ish………(Ducky is calling today also)



I shall be wearing my scabby weatherproof jacket…..club badge…club cap……Leica Camera at the ready………and a happy smiling face



Hope to see you there and anybody else from ………………..The Merry Men of the Net!



Bob

[Paul TParticipant @pault84577]

Bob

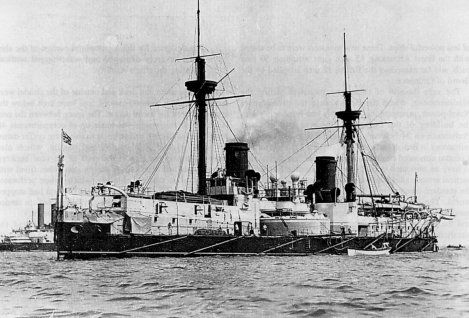

Just for information here is a photo of HMS Inflexible

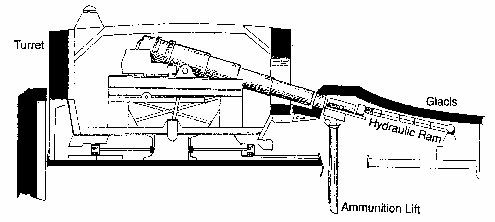

And a drawing of its gun loading system (sorry its not very good image)



I hope to get to Ellesmere on Saturday and I shall look out for you



Paul

[Bob Abell 2Participant @bobabell2]

Hello Paul



Thanks for posting the HMS Inflexible pix



That big guns is really awesome!………………..How did they get the powder in at that angle?



I wonder why we made such ships?………………Who was the intended enemy in those days?



See you on Saturday…………………..Bob

[Rick FryerParticipant @rickfryer11539]

Bob,



The Italians went one better and commissioned  100-ton 17.7-inch guns from Armstrongs for the Duilio and Dandalo. The British were so afraid of what these huge guns might do in the Mediterranean that they installed two of their own in Gibraltar and two in Malta for coastal defence.



One of the Maltese guns, at Fort Rinell, is still in existence and is well worth a visit if you are out that way.





Rick

[Bob Abell 2Participant @bobabell2]

Thanks for the picture Rick…………Interesting colour scheme?



Bob

[Paul TParticipant @pault84577]

Hello Bob

Re your question as to why we had such ships.

Back then the British navy was the most powerful and therefore the most feared military force in the world, so having these ships maintained the fear and helped us keep a grip on our empire and trade routes.

Who was the intended enemy?
Any one from a entire country to a tribe of pigmies we just didn’t care who we visited with gun boats.

Paul

[ashley needhamParticipant @ashleyneedham69188]

Paul, as a generalisation thats right, but I think more specifically the French, and secondly the Americans were the preferred enemy. And the Russians at this time of course, and the Germans had an eye on things and as you say the Chinese had to be kept an eye on with gunboats, and all those african type colonial setups, and the peruvians……..

Yes, perhaps you are spot on after all    Ashley
